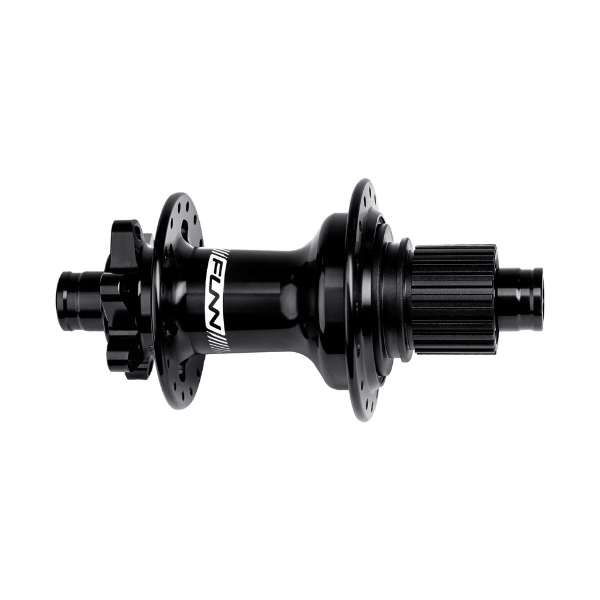

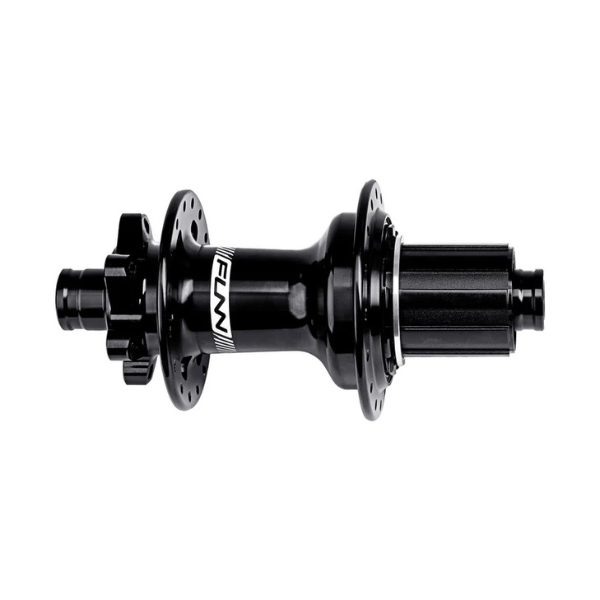

Fantom2 Mountain Bike Rear Hub
Quick engagement. Ready when you pedal.

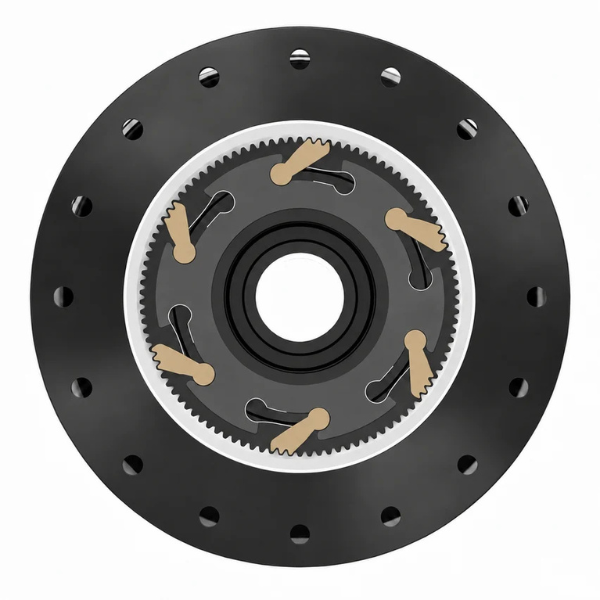

Fantom2 combines six simultaneously engaging pawls with a 102T ratchet for fast pick-up and quicker starts. Just over 3.5° between engagement points keeps your pedal response immediate.
Thicker ratchet teeth than the previous generation and upgraded sealing add durability for demanding rides.

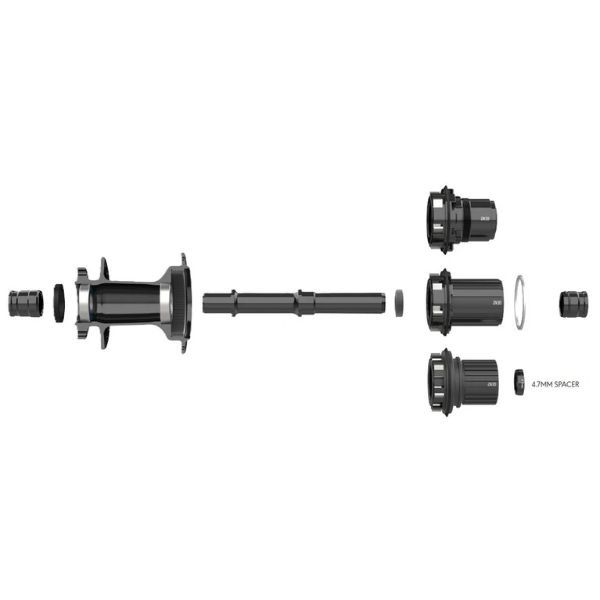

Interchangeable cassette bodies come in lightweight alloy or high-strength steel suited to e-bikes. Both are available in Shimano HG, Micro Spline and SRAM XD.
Features:
- Six pawls engage simultaneously with a 102-tooth ratchet for fast, positive power transfer
- Just over 3.5° between engagement points for responsive starts and acceleration
- Lightweight alloy or high-strength steel cassette bodies, with steel suited to e-bike use
- Shimano HG, Shimano Micro Spline and SRAM XD options in both materials
- Upgraded sealing helps keep water and dirt out
- CNC-grooved end caps can be removed by hand for service access
- Boost 12 x 148mm, 32 spoke holes and a 6-bolt disc mount
Specification:
Fantom2 Rear Hub
Axle spacing Boost 12 x 148mm
Spoke holes 32H
Disc mount 6-bolt
Ratchet 102T, six pawls engaging simultaneously
Pawl contact width 6.6mm
Internal axle 15–17–15mm stepped design
Freehub options Shimano HG / Shimano Micro Spline / SRAM XD
Freehub material Alloy or steel in each driver standard
Weight 318g (Boost hub with alloy SRAM XD freehub)
Colour Black
