ME 2000, designed specifically for e-bike riders, is connected and powered directly by the output of the e-bike motor (Shimano, Bosch, Brose,Yamaha).

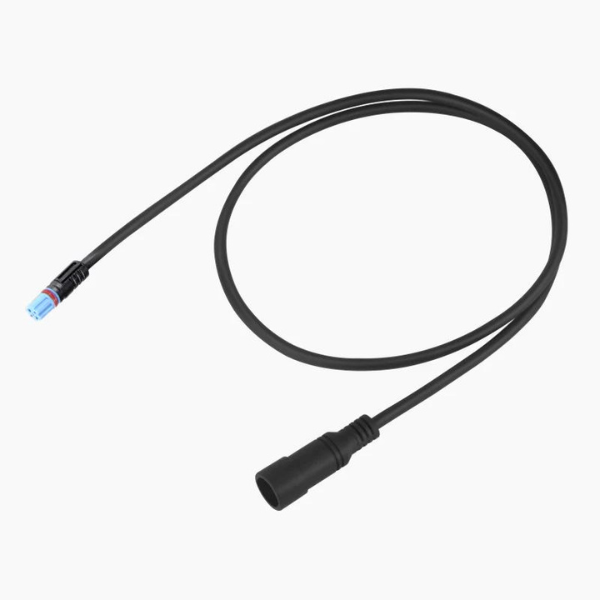

** Must be used with the Magic Shine E-Bike Cable listed below and sold seperately**

Please refer to resources for newest motor output table

Mode	High	Mid	Low	Flash	DRL
Lumens	2000	1000	600	0-600	20

Features:

Daytime Running Light
Ambient Light Sensor
MAX Lumen: 2000
Waterproof: IPX 6
Aluminum Alloy Case
Application: E-Bike; Road, Off-Road.

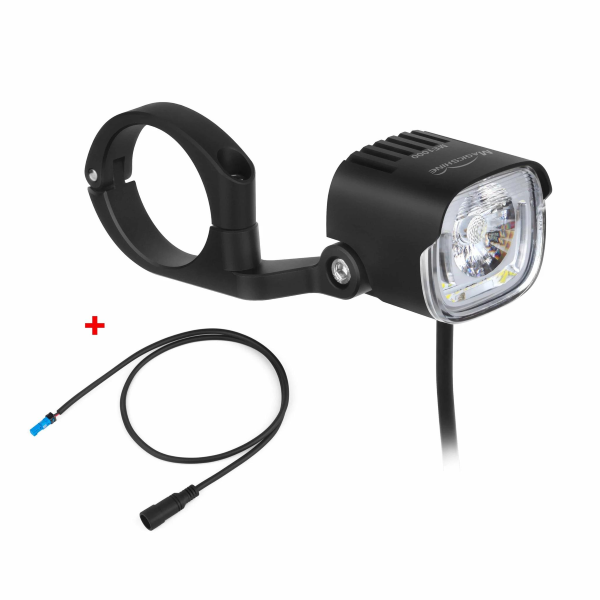

Our latest ME 2000, designed specifically for e-bike riders, is connected and powered directly by the output of the e-bike motor. 2000 lumens of max output emitted from two highly power efficient LEDs, it is well suited for mountain biking and road cycling.

The quality of a light depends largely on the power and precision of its optical components, and we sure have invested a lot of time and effort into perfecting the ME 2000’s front lens. When matched with supremely powerful LEDs, the beam pattern produced is incredibly bright, yet smooth and homogeneous with soft edges and no hot spots. An always-on Daytime Running Light engineered in the lens greatly increases the level of passive visibility for riders traveling along a busy road. A brightness sensor is constantly detecting ambient light levels and automatically switches on the main LED from DRL when the environment becomes poorly lit, such as night time or when the rider has entered a tunnel.

With its one-sided aluminum holder, the ME 2000 can be installed on either side of the stem on the handlebar without removing a grip, shifters or brake levers, though only compatible with 31.8mm and 35mm handlebars. The adjustable light head provides wide arc of light(up to 45°, down to 90°). Stability is much improved thanks to the integration between the mount and the ME 2000’s one piece aluminum alloy housing which offers IPX6 waterproof rating. Aside from providing excellent protection and durability, large area metallic shell is extremely conducive to heat dissipation, in conjunction with its highly advanced internal smart thermal management system, ME 2000 is able to maintain its max output throughout a very long trip without throttling nor wearing down its core components.

ME 2000 is able to adapt itself to power provided from most drive systems of various e-bike manufacturers(6v/12v Bosch, Shimano, Brose, Yamaha.) within a 6-12V range. Max lumen capable is directly correlated to input DC voltage and max allowed amps.

Please refer to the image below regarding power outputs to ensure compatibility

Shimano Install Video

Giant Install Video

Magic Shine E-Bike Output Table

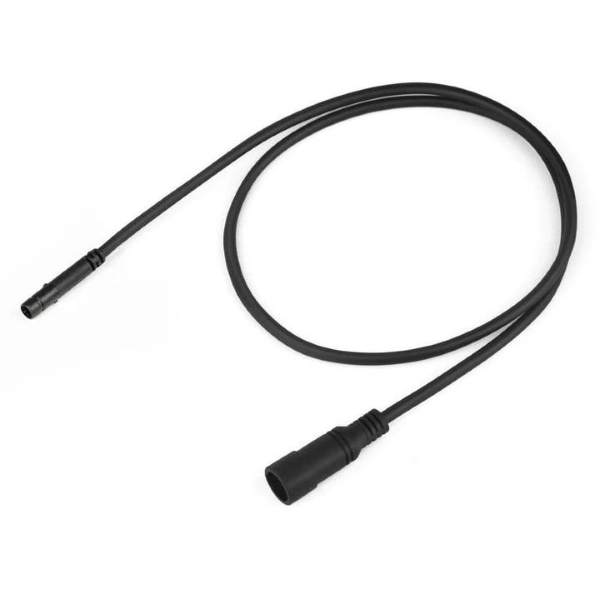

Magicshine E-Bike Front Light Cables, To Suit Older Model Light
